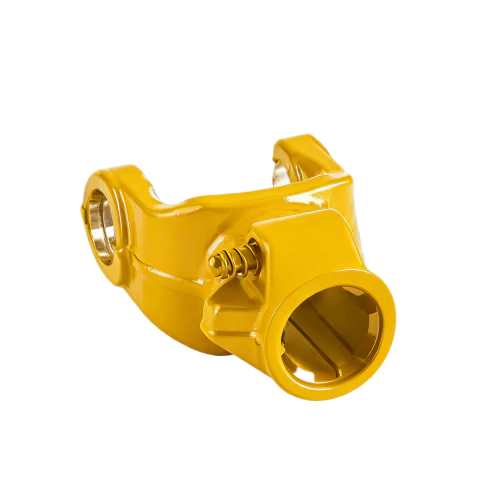

Splined Yoke 01 (Push Pin) — Quick-Release Splined PTO End Yoke for Tractor Connections
The Splined Yoke 01-Push Pin is a standard tractor-end PTO connection yoke with a 1 3/8-inch, 6-spline (Z6) internal bore that mates directly with the tractor PTO output stub shaft. The integrated spring-loaded push pin provides positive locking for fast, tool-free attachment and detachment — saving valuable time when switching between implements during busy seasons. Precision-forged and CNC-machined from alloy steel, this yoke features hardened spline teeth and bearing bores for thousands of hours of service.
🔧 Technical Specifications
| Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F |
|---|---|---|---|---|---|---|
| 1.0501B | 22 | 54 | 93 | 21 | 22 | 1 3/8″Z6 |
| 2.0501B | 23.8 | 61.3 | 99 | 21 | 22 | 1 3/8″Z6 |
| 3.0501B | 27 | 70 | 104 | 21 | 22 | 1 3/8″Z6 |
| 4.0501B | 27 | 74.6 | 106 | 21 | 22 | 1 3/8″Z6 |
| 5.0501B | 30.2 | 80 | 110 | 21 | 22 | 1 3/8″Z6 |
| 32.0501B | 32 | 76 | 110 | 21 | 22 | 1 3/8″Z6 |
| 6.0501B | 30.2 | 92 | 115 | 21 | 22 | 1 3/8″Z6 |
| 7.0501B | 30.2 | 106.5 | 130 | 21 | 22 | 1 3/8″Z6 |
| 8.0501B | 35 | 106.5 | 130 | 21 | 22 | 1 3/8″Z6 |
| 38.0501B | 38 | 105.6 | 130 | 21 | 22 | 1 3/8″Z6 |
⭐ Key Features & Benefits
🔒 Spring-Loaded Push Pin Lock
One-hand push pin allows rapid connection to tractor PTO shaft without tools.
⚙ 1 3/8″ 6-Spline (Z6) Bore
Industry-standard bore fits virtually all standard-duty tractor PTO outputs worldwide.
💪 Hardened Spline Teeth
Induction hardened for wear resistance against continuous PTO shaft rotation.
📐 Series 1-38 Coverage
From 22 mm bearing bore (compact tractors) to 38 mm (medium-heavy duty).
🔧 DIN 9611 / ASAE S203.14 Compliant
Spline bore machined to international standards for proper engagement.
🛡 Durable Pin Mechanism
Hardened steel pin with stainless steel spring resists corrosion and maintains lock force.
🔄 Compatibility Information
Fits all standard 1 3/8″ 6-spline PTO output shafts per ASAE S203.14 and ISO 500. Compatible with John Deere, Massey Ferguson, New Holland, Kubota, Case IH, Ford, AGCO, Kioti, LS Tractor, Mahindra, and virtually all other tractor brands with standard-duty PTO outputs.
📚 Selection Guide
Step 1 — Verify PTO Size: Standard-duty tractors use 1 3/8″ Z6 (540 RPM). Heavy-duty uses 1 3/4″ Z20 (1000 RPM). This yoke fits Z6.
Step 2 — Choose Series by Cross Kit: Series 1 (22mm) for light duty up to Series 38 (38mm) for medium-heavy.
Step 3 — Confirm Push Pin Type: Ensure pin style matches your shaft or tractor engagement method.
🌾 Typical Application Scenarios
Rotary mowers, disc mowers, tedders, rakes, small square balers
Rotary tillers, cultivators, bed formers, compact power harrows
Post-hole diggers, small pumps, broadcast spreaders
Grain augers, feed grinders, manure spreaders, snowblowers
🛠 Installation & Usage Guide
- Align splines: Rotate yoke until 6 internal splines align with tractor PTO shaft.
- Push onto shaft: Slide until push pin snaps into the locking groove.
- Verify engagement: Pull lightly to confirm pin is fully seated.
- Connect PTO shaft: Attach cross kit and drive shaft.
- Grease splines: Apply anti-seize or PTO spline grease.
- Install safety shield: Always install shield before operating.
❓ Frequently Asked Questions
🌟 Customer Reviews
Mike T. — 🇦🇺 Australia
“Fast push-pin engagement saves us heaps of time switching implements. Quality is spot-on.”
Dieter H. — 🇩🇪 Germany
“Reliable Z6 spline fit on Deutz-Fahr and Fendt tractors. We supply these to workshops across Bavaria.”
Ricardo P. — 🇧🇷 Brazil
“Good value push pin yoke. Spline teeth are well-machined and pin mechanism is robust.”
Kevin O. — 🇺🇸 United States
“Perfect replacements for John Deere and Kubota PTO connections.”
Antoine C. — 🇫🇷 France
“Push pin spring is strong, build quality matches Walterscheid originals.”
⚖ Our Product vs. Inferior Alternatives
| Feature | Ever-power | Low-Cost Alternatives |
|---|---|---|
| Spline Accuracy | DIN 9611 / ASAE S203.14 | Approximate spline, poor mesh |
| Push Pin Material | Hardened steel with SS spring | Soft pin, weak spring |
| Spline Hardness | Induction hardened HRC 55+ | Unhardened, rapid wear |
| Bearing Bore | CNC ground ±0.02 mm | Poorly finished |
| Pin Retention Force | Strong positive lock | Weak, prone to disengagement |
| Certification | ISO 9001, ASAE compliant | No standards compliance |
🔗 Related Products & Accessories
1 3/8″ Z6 PTO Stub Shafts
Tractor-side PTO output stubs
Cross Kits for Series 1-38
Universal joint kits in all sizes
PTO Safety Guards
Plastic shield assemblies
Slip Yokes
Companion splined slip yokes for telescoping
Explore our full PTO shaft components catalog for matching parts.
✅ Certifications & Quality Standards
- ISO 9001:2015 Certified
- ASAE S203.14 Spline Compliance
- Hardness Test Reports
- Dimensional Inspection per DIN 9611
- Push Pin Spring Force Testing
🏭 Why Choose Ever-power?

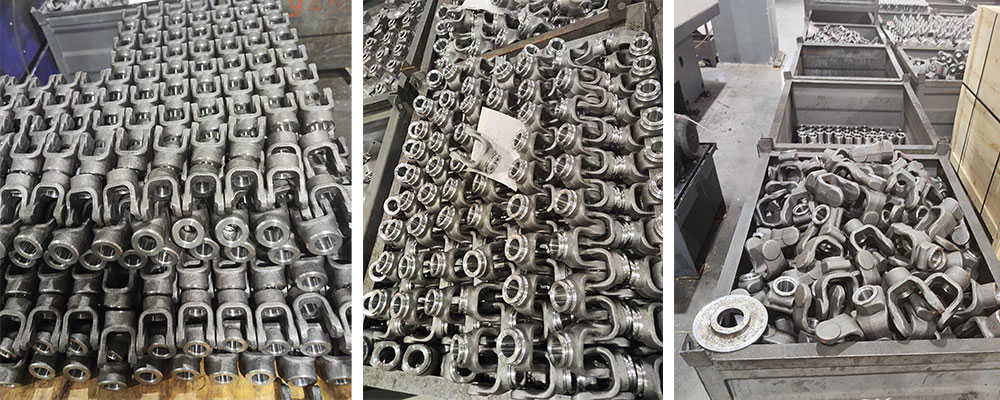

We are one of the largest producers of splined PTO yokes in Asia, with dedicated spline broaching and hobbing lines capable of producing over 300,000 splined yokes per year. Our push pin yokes are trusted by OEM tractor manufacturers and aftermarket distributors on every continent.
