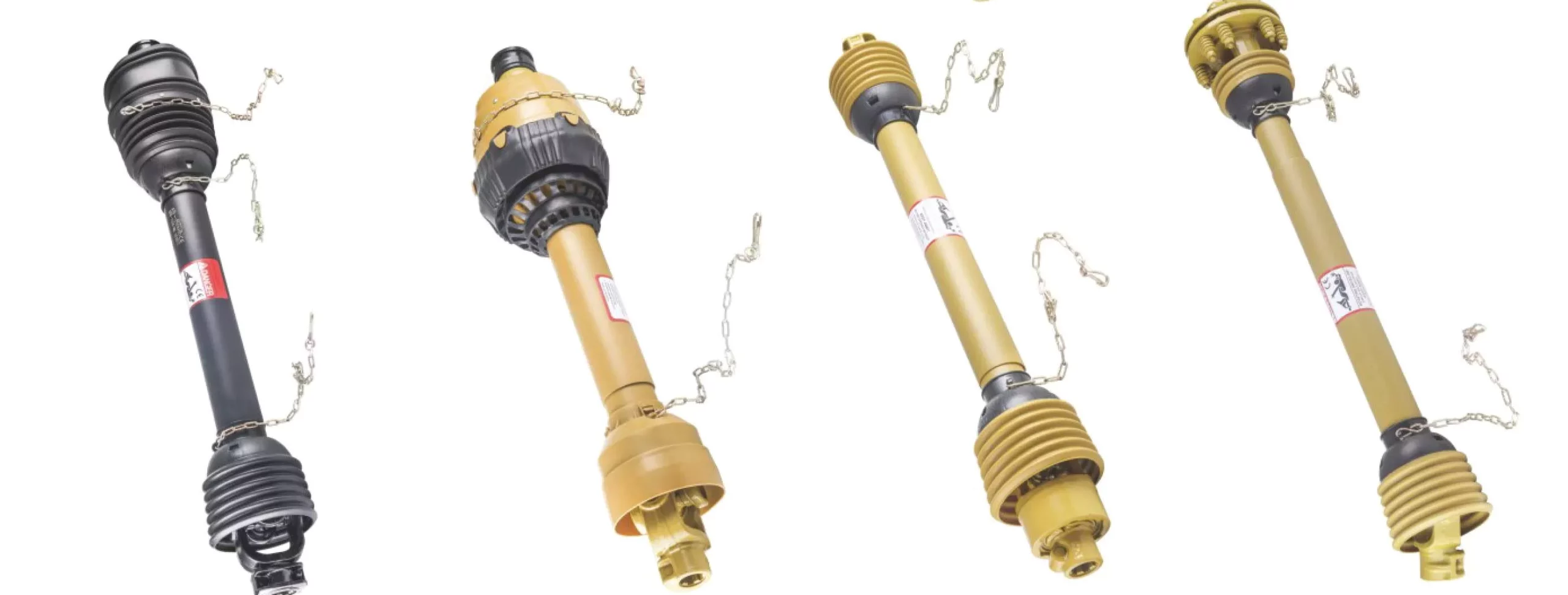

PTO Shaft for PTO Generator / PTO Alternator – Heavy-Duty Power Transmission Solutions
Operating a PTO generator demands reliable, uninterrupted rotational power delivered from the tractor’s power take-off (PTO) to the implement. Our PTO shaft for PTO generator is precision-engineered to handle the unique torque loads, speed requirements, and environmental stresses of tractor-powered electrical generation. Whether you manage broadacre farming or intensive horticulture, this PTO drive shaft ensures peak performance season after season.
Technical Specifications – PTO Generator / PTO Alternator PTO Shaft
| Parameter | Specification / Customisable Range |
|---|---|
| Application | PTO Generator / PTO Alternator |
| Recommended Tractor HP | 60–180 HP |
| PTO Speed | 540 rpm (Economy) |
| Maximum Continuous Torque | 400–1200 Nm |
| Peak Torque Capacity | 1800 Nm |
| Shaft Series | T4 / L4 (Medium-heavy duty) / T5 / L5 (Heavy duty) / T6 / L6 (Super heavy duty) |
| Assembly Weight | 9–38 kg (varies by length) |
| Spline Hardness | HRC 58-62 |
| Operating Temperature Range | -20°C to +80°C |
| Recommended Lubricant | NLGI #2 multi-purpose |
| Overload Protection Options | Friction clutch torque limiter / Cam-release clutch / Ratchet torque limiter |
| Tube Profile | Square profile or Star profile |
| Guard Colour | Black |
| Outer Tube Diameter | 70 mm |
| Closed Length (Lmin) | 800–1300 mm (customisable) |
| Tractor-End Yoke Options | Splined yoke (1-3/8″ 21-spline) / Splined yoke (1-3/8″ 6-spline) |
| Dynamic Balance | Dynamically balanced to ISO 1940 G16 |
| Safety Guard Material | Metal-reinforced composite / Injection-moulded PP (polypropylene) |
| Universal Joint Cross Size | 30.2×92 mm / 27×74.5 mm / 34.9×106.5 mm |
| Maximum Operating Angle | 35° |
How a PTO Shaft Works on a PTO Generator / PTO Alternator
The PTO shaft transmits rotational energy from the tractor’s rear PTO stub to the input shaft of the PTO generator. The assembly consists of two yokes connected by a telescoping profile tube, with universal joints (U-joints) at each end allowing angular misalignment as the tractor and implement articulate over uneven ground.
During tractor-powered electrical generation, the tractor PTO stub rotates at a standardised speed. This rotation passes through the first U-joint, travels along the profile tube (which telescopes to accommodate changes in distance), and exits through the second U-joint into the implement gearbox. A safety guard encloses the entire rotating assembly to prevent entanglement.
On the PTO generator specifically, the PTO shaft drives the main gearbox, which in turn powers the working elements. Overload protection—typically a shear bolt or friction clutch—is integrated at the implement-end yoke to safeguard the driveline against sudden blockages or shock loads.
Core Advantages of Our PTO Shaft for PTO Generator / PTO Alternator
⚙ Heat-Treated Components
Every yoke and U-joint cross in our PTO generator PTO shaft is induction-hardened and tempered, delivering superior fatigue resistance compared to standard cast components.
⚖ Precision-Balanced Assembly
Computer-balanced shaft assemblies minimise vibration, reducing wear on tractor and implement bearings and extending overall driveline life.
🔒 Integrated Overload Protection
Factory-fitted torque limiters protect your investment by automatically disengaging under shock loads, preventing costly repairs to gearboxes and drivelines.
🔧 Telescoping Design
Profile tubes telescope smoothly to accommodate field undulations and turning manoeuvres, ensuring consistent power delivery during operation.
🛡 Full Safety Guarding
CE-compliant safety shields with bearing-mounted rotation enclose the entire shaft, meeting Australian WHS requirements and protecting operators.
🏆 Extended Warranty
We stand behind our products with an industry-leading warranty, reflecting our confidence in the durability and reliability of every PTO shaft we supply.
Cross-Compatibility & Replacement Fit Guide
This PTO shaft is engineered to replace OEM and aftermarket drivelines fitted to PTO generator equipment from Bondioli & Pavesi, GKN Walterscheid, Benzi & Di Terlizzi, Walterscheid, AgroTech, AgriCardan, among others. Our technical team can cross-reference your existing part number to ensure a precise match.
⚠ The use of brand names above is for the sole purpose of assisting customers in identifying compatible replacement parts. No affiliation with or endorsement by any listed brand is implied. All trademarks belong to their respective owners.
Individual Components & Spares
We supply every PTO shaft component separately—cross kits, yoke assemblies, inner and outer tubes, guard sets, clutch assemblies, shear pins, and mounting hardware—so you can rebuild or reconfigure your shaft as needed without purchasing a full replacement.
Regulatory Compliance & Regional Information
Work Health & Safety (WHS)
In Australia, PTO shaft guarding is mandated under the model Work Health and Safety Regulations. Every PTO shaft we supply for PTO generator use includes a full-length safety guard assembly, meeting the requirements outlined in the Managing the Risks of Plant in the Workplace Code of Practice.
International Standards
Our products are manufactured to ISO 5673-1 and ISO 5673-2 specifications for PTO driveline dimensions and guarding. Universal joints conform to DIN 71752 for cross and bearing cup tolerances.
Import & Customs
PTO shafts and components are classified under Australian Customs Tariff heading 8483 (transmission shafts and cranks; bearing housings; gears and gearing). Duty rates and GST apply at the time of import. We handle all customs documentation for Australian deliveries.
Quick Selection Guide for PTO Generator / PTO Alternator PTO Shafts
Use the table below to determine the correct PTO shaft specification for your PTO generator. Measure your existing shaft or consult your implement manual before ordering.
| Parameter | What to Check | Typical Range for PTO Generator / PTO Alternator |
|---|---|---|
| Tractor HP | Check tractor nameplate or manual | 60–180 HP |
| PTO Speed | Tractor PTO setting & implement requirement | 540 or 1000 rpm |
| PTO Spline Size | Count splines on tractor PTO stub | 1-3/8" 6-spline or 1-3/4" 6-spline |
| Shaft Closed Length | Measure tractor PTO to implement input | 800–1300 mm |
| Required Torque | Check implement manual or calculate from HP/speed | 400–1200 Nm |
| Recommended Series | Match to torque requirement | T4 / L4 (Medium-heavy duty) / T5 / L5 (Heavy duty) / T6 / L6 (Super heavy duty) |
| Overload Protection | Assess risk of sudden blockage | Friction clutch or shear bolt |
| Implement Yoke Type | Match to implement input shaft profile | Quick-release or splined |
📌 Not sure which shaft to choose? Contact our technical team with your tractor model and implement details for a free recommendation.
Installation Guide – PTO Shaft on PTO Generator / PTO Alternator
⚠ Warning: Always shut down the tractor engine, disengage the PTO, and wait for all rotating parts to stop completely before beginning installation. Follow your tractor and implement manufacturer’s safety instructions.
Step 1: Pre-Installation Inspection
Unpack the PTO shaft and inspect all components for shipping damage. Verify that the yoke splines, U-joints, profile tubes, and safety guards are in perfect condition. Confirm the shaft series and length match your PTO generator requirements.
Step 2: Set Correct Shaft Length
Park the tractor with the PTO generator in its normal working position. Measure the distance from the tractor PTO stub face to the implement input shaft face. Adjust the telescoping tubes so that the shaft closed length is approximately 10–15 mm shorter than this measured distance to allow for suspension travel.
Step 3: Connect Tractor-End Yoke
Slide the tractor-end yoke onto the PTO stub shaft. Ensure the splines engage fully and the locking mechanism (push-pin or collar) clicks into place. Verify there is no excessive radial play.
Step 4: Connect Implement-End Yoke
Align the implement-end yoke with the PTO generator’s input shaft. Slide the yoke onto the splines or into the keyway and secure with the appropriate locking mechanism. If a torque limiter is present, ensure it is correctly oriented per the manufacturer’s markings.
Step 5: Install Safety Guards
Slide the guard halves over the shaft and connect them using the supplied clips. Attach the guard retention chains—one to the tractor drawbar or a fixed point, one to the implement frame. The guards must be able to rotate freely and must never be attached to a rotating component.
Step 6: Final Check & Test Run
Verify all connections are secure. Start the tractor engine and engage the PTO at idle speed. Observe the shaft for smooth rotation, unusual vibration, or noise. Gradually increase to operating speed. Re-check all fasteners after the first hour of operation.
PTO Shaft Troubleshooting Guide for PTO Generator / PTO Alternator
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Clicking or knocking noise at low speed | Worn U-joint needle bearings; loose yoke on PTO stub | Replace U-joint assembly; check spline wear and yoke locking mechanism |
| Shaft will not telescope smoothly | Corrosion or debris in profile tubes; insufficient lubrication | Clean and grease profile tubes; replace if scoring is visible |
| Excessive vibration during operation | Worn U-joint cross bearings; shaft out of balance; excessive operating angle | Replace U-joint cross kit; check yoke alignment; reduce operating angle to <25° |
| Unusual whining or grinding sound | Gearbox input bearing failure; misaligned shaft | Inspect implement gearbox; re-align tractor and implement; check shaft length overlap |
| Safety guard not rotating freely | Guard bearings seized; guard damaged or misaligned | Replace guard bearings; straighten or replace guard halves; re-attach chains correctly |
| Heat build-up at U-joint | Insufficient lubrication; excessive operating angle; bearing failure | Grease U-joints immediately; reduce operating angle; replace cross kit if bearings are damaged |
| PTO shaft disconnects during operation | Worn locking collar; damaged retaining groove on PTO stub | Replace quick-release yoke; inspect and repair PTO stub groove if worn |
| Overload clutch slipping under normal load | Clutch plates worn or contaminated; incorrect torque setting | Adjust clutch torque setting; replace clutch plates if worn or oil-contaminated |
Case Studies – PTO Shaft for PTO Generator / PTO Alternator in Australia
Field notes from our engineering and sales team across Australia:
📍 Bathurst, NSW – Ray Pearson
Purpose: Replaced a corroded shaft that had been exposed to chemical spray residues
Feedback: “Fitted perfectly to my PTO generator with zero modification. The quality is noticeably better than the OEM shaft it replaced. I’ll be ordering more for my other implements.”
📍 Wagga Wagga, NSW – Russell Wright
Purpose: Outfitted a newly purchased second-hand PTO generator with a reliable aftermarket PTO shaft
Feedback: “The safety guards are solid and rotate freely. They actually meet the WHS requirements unlike the cheap ones you get from other suppliers.”
📍 Devonport, TAS – Luke Ashworth
Purpose: Needed a direct-fit replacement after the original shaft suffered a U-joint failure mid-season
Feedback: “Our mechanic was impressed with the precision of the splines and the quality of the needle bearings. He said it’s the best aftermarket shaft he’s fitted in 20 years.”
📍 Adelaide, SA – Craig Henderson
Purpose: Upgraded from a light-duty shaft to a heavy-duty series for commercial-scale tractor-powered electrical generation
Feedback: “We run our PTO generator hard across 2,000 hectares and this shaft hasn’t missed a beat after two full seasons. Exceptional value for money.”
📍 Katanning, WA – Neville Grant
Purpose: Upgraded overload protection from shear bolt to friction clutch for smoother tractor-powered electrical generation
Feedback: “Fast delivery to regional Australia. The shaft arrived well-packaged and the U-joints are smooth as butter. Very impressed with the build quality.”
Frequently Asked Questions – PTO Shaft for PTO Generator / PTO Alternator
❓ What warranty do you offer on PTO shafts?
All PTO shafts carry a manufacturer’s warranty against defects in materials and workmanship. Warranty terms vary by series. Contact our team for specific warranty details applicable to your purchase.
❓ How often should I grease the PTO shaft?
Grease all U-joint nipples every 8–10 hours of operation, or at the start of each working day. Grease the telescoping profile tubes at the same interval. Use EP2 lithium-complex grease or as recommended in your product manual.
❓ Can I upgrade my existing PTO generator PTO shaft to a heavier series?
In most cases, yes. As long as the yoke spline sizes match your tractor PTO stub and implement input shaft, you can upgrade to a heavier series for increased torque capacity and durability. Our technical team can advise on the correct upgrade path for your equipment.
❓ Are your PTO shafts balanced?
Yes. All our PTO shaft assemblies are dynamically balanced during manufacture. This reduces vibration, extends bearing life, and provides smoother operation compared to unbalanced aftermarket alternatives.
❓ Will this shaft fit my tractor and PTO generator?
Our PTO shafts are available with all standard yoke types and spline sizes (1-3/8" 6-spline, 1-3/4" 6-spline, 1-3/4" 20-spline, and more). Provide your tractor model and PTO generator make/model, and our team will confirm compatibility before dispatch.
❓ What is the difference between a shear bolt and a friction clutch?
A shear bolt is a sacrificial pin that breaks when torque exceeds its rated capacity. It is inexpensive but requires manual replacement after each event. A friction clutch slips when overloaded and automatically re-engages when the overload clears, offering uninterrupted operation in applications prone to frequent shock loads.
❓ What PTO shaft series do I need for my PTO generator?
For most PTO generator applications in the 60–180 HP range, we recommend the T4 / L4 (Medium-heavy duty) or T5 / L5 (Heavy duty) series. If you operate near the upper end of this range or in particularly demanding conditions, consider stepping up to the S8 (Wide-angle) series for additional safety margin.
❓ What causes premature U-joint failure?
Common causes include insufficient lubrication, excessive operating angles (over 25°), running at speeds higher than rated, misalignment between tractor and implement, and lack of regular inspection. Following the recommended maintenance schedule significantly extends U-joint life.
