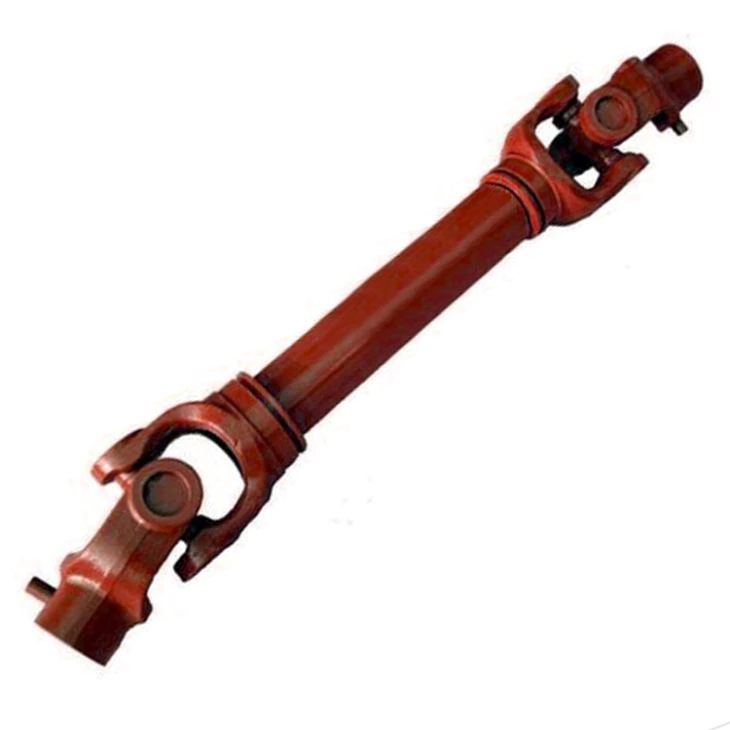

Premium PTO Shaft Solution for Crawler Tractor Operations
Efficient tracked tractor PTO operations with a crawler tractor hinges on the quality of its PTO shaft connection. Our PTO shaft for crawler tractor is purpose-designed to transfer tractor power reliably across varying field conditions. From the universal joints to the telescoping tubes, every component is selected for durability and compatibility with leading tractor brands. Explore our full range of PTO shafts.
Technical Specifications – Crawler Tractor PTO Shaft
| Parameter | Specification / Customisable Range |
|---|---|
| Application | Crawler Tractor |
| Recommended Tractor HP | 80–350 HP |
| PTO Speed | 540 rpm (Economy) |
| Maximum Continuous Torque | 800–2500 Nm |
| Peak Torque Capacity | 3750 Nm |
| Shaft Series | T5 / L5 (Heavy duty) / T6 / L6 (Super heavy duty) / T7 / L7 (Ultra heavy duty) |
| Spline Hardness | HRC 55-60 |
| Yoke Material | Forged carbon steel (C45) |
| Maximum Operating Angle | 35° |
| Tube Profile | Star profile or Square profile |
| Closed Length (Lmin) | 900–1500 mm (customisable) |
| Operating Temperature Range | -20°C to +80°C |
| Dynamic Balance | Dynamically balanced to ISO 1940 G6.3 |
| Outer Tube Diameter | 54 mm |
| Recommended Lubricant | EP2 lithium-complex |
| Overload Protection Options | Friction clutch torque limiter / Cam-release clutch / Free-wheel overrunning clutch |
| Guard Colour | Yellow (RAL 1003) |
| Maximum Extended Length | 1717 mm |
| Tractor-End Yoke Options | Flange yoke / Splined yoke (1-3/4″ 6-spline) |
| U-Joint Bearing Type | Greased needle roller |
How the PTO Shaft Operates in Crawler Tractor Applications
The PTO shaft serves as the mechanical bridge between tractor and crawler tractor. Mounted between the tractor’s rear PTO outlet and the implement’s input connection, it converts the tractor’s stationary-axis rotation into a flexible, articulating power stream that can follow the implement through field manoeuvres.
Internally, two precision universal joints provide up to 25° of operating angle, while the profile tube telescopes to accommodate the variable distance between tractor and implement during tracked tractor PTO operations. The shaft rotates at the selected PTO speed, delivering continuous torque to power the crawler tractor’s working components.
Built into the assembly is a torque-limiting device—either a friction clutch, shear bolt, or cam-release mechanism—positioned at the implement end. This device automatically disengages when torque exceeds a set threshold, preventing damage to both the PTO shaft and the crawler tractor’s internal gearing.
Core Advantages of Our PTO Shaft for Crawler Tractor
⚙ Needle-Bearing U-Joints
Premium needle-bearing universal joints in our crawler tractor PTO shaft handle higher radial loads and last up to 3x longer than plain bearing alternatives.
🔨 Modular Assembly
Modular design lets you replace individual components—yokes, tubes, U-joints, guards—without replacing the entire shaft assembly.
🔒 Dual-Direction Protection
Overrunning clutches prevent reverse torque from damaged implements from feeding back into the tractor’s PTO gearbox.
⚖ Vibration-Dampened
Precision-machined profile tubes and balanced assemblies produce significantly less vibration, reducing operator fatigue during long shifts.
🛠 Colour-Coded Series
Series identification is simple with our colour-coded guard system—match the colour to your required torque rating instantly.
🌍 Fast Australian Delivery
Stocked in Australian warehouses for rapid dispatch—most orders ship within 48 hours to anywhere on the continent.
Cross-Compatibility & Replacement Fit Guide
This PTO shaft is engineered to replace OEM and aftermarket drivelines fitted to crawler tractor equipment from AgroTech, Profile Connect, PTOline, Walterscheid, Shafto, Driveline Parts, among others. Our technical team can cross-reference your existing part number to ensure a precise match.
⚠ The use of brand names above is for the sole purpose of assisting customers in identifying compatible replacement parts. No affiliation with or endorsement by any listed brand is implied. All trademarks belong to their respective owners.
Individual Components & Spares

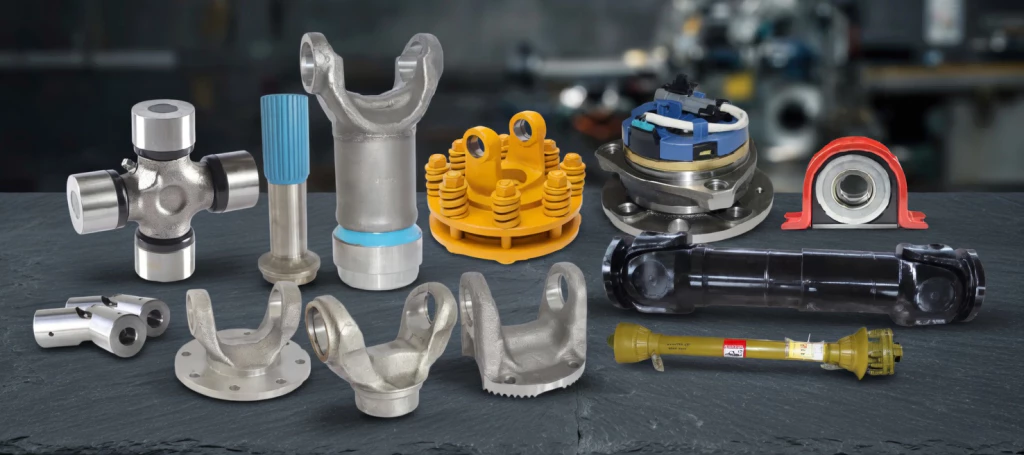

We supply every PTO shaft component separately—cross kits, yoke assemblies, inner and outer tubes, guard sets, clutch assemblies, shear pins, and mounting hardware—so you can rebuild or reconfigure your shaft as needed without purchasing a full replacement.
Regulatory Compliance & Regional Information
Work Health & Safety (WHS)
In Australia, PTO shaft guarding is mandated under the model Work Health and Safety Regulations. Every PTO shaft we supply for crawler tractor use includes a full-length safety guard assembly, meeting the requirements outlined in the Managing the Risks of Plant in the Workplace Code of Practice.
International Standards
Our products are manufactured to ISO 5673-1 and ISO 5673-2 specifications for PTO driveline dimensions and guarding. Universal joints conform to DIN 71752 for cross and bearing cup tolerances.
Import & Customs
PTO shafts and components are classified under Australian Customs Tariff heading 8483 (transmission shafts and cranks; bearing housings; gears and gearing). Duty rates and GST apply at the time of import. We handle all customs documentation for Australian deliveries.
PTO Shaft Selection Guide – Crawler Tractor
Selecting the right PTO shaft for your crawler tractor is straightforward when you follow this step-by-step guide. Gather the information below before placing your order.
| Step | Action | Details for Crawler Tractor |
|---|---|---|
| 1 | Identify tractor PTO HP | Typical: 80–350 HP for this application |
| 2 | Confirm PTO speed setting | 540 rpm or 1000 rpm (check implement manual) |
| 3 | Measure closed length (Lmin) | 900–1500 mm |
| 4 | Count tractor PTO splines | 6-spline (1-3/8") or 6-spline (1-3/4") most common |
| 5 | Check implement input connection | Splined, keyed, or flanged input |
| 6 | Calculate torque requirement | 800–2500 Nm |
| 7 | Select shaft series | T5 / L5 (Heavy duty) or T6 / L6 (Super heavy duty) |
| 8 | Choose overload protection | Friction clutch recommended for crawler tractor |
📌 Need help? Contact us for expert guidance.
Targeted Installation Procedure – Crawler Tractor PTO Shaft
⚠ Safety First: Disengage the PTO, switch off the engine, remove the ignition key, and allow all moving parts to come to a complete stop before working on the driveline. Wear appropriate PPE including close-fitting clothing and gloves.
Phase 1: Preparation
Lay out all shaft components and cross-reference against the packing list. Confirm the shaft series, closed length, and yoke specifications match your crawler tractor setup. Grease all U-joint nipples and slide the profile tubes back and forth several times to distribute lubricant.
Phase 2: Length Verification
With the crawler tractor hitched to the tractor in its normal operating position, measure the PTO-to-input distance. The shaft must have a minimum of 1/3 tube overlap at full extension and must not bottom out at the shortest position. Trim the tubes if the factory length requires adjustment (refer to cutting instructions in the product manual).
Phase 3: Tractor Connection
Push the tractor-end yoke fully onto the PTO stub. The quick-release collar should snap over the retaining groove. Pull back on the yoke to confirm it is locked. If using a plain-bore yoke, insert the shear pin and secure with a cotter pin.
Phase 4: Implement Connection
Connect the implement-end yoke to the crawler tractor’s input. If a clutch assembly is fitted at this end, ensure the clutch housing is oriented with the grease nipple accessible. Tighten any set screws to the specified torque.
Phase 5: Guard Fitting
Assemble the two guard halves around the shaft and clip together. Attach the anti-rotation chains: one chain to a stationary tractor point, one chain to the implement frame. Verify the guards spin freely by hand without contacting any part of the shaft or yokes.
Phase 6: Operational Test
Start the tractor, engage PTO at low idle, and run the crawler tractor unloaded for two to three minutes. Check for vibration, abnormal noise, or heat at the U-joints. If all checks pass, proceed to normal operating speed and begin field work. Re-torque all fasteners after the initial run-in period.
PTO Shaft Troubleshooting Guide for Crawler Tractor
⚠ Unusual whining or grinding sound
Possible Cause: Gearbox input bearing failure; misaligned shaft
Recommended Action: Inspect implement gearbox; re-align tractor and implement; check shaft length overlap
⚠ Shear bolt breaks repeatedly
Possible Cause: Implement blockage not cleared; wrong bolt grade used; shaft undersized
Recommended Action: Clear blockage source; use only specified bolt grade; consider upgrading to next shaft series
⚠ Overload clutch slipping under normal load
Possible Cause: Clutch plates worn or contaminated; incorrect torque setting
Recommended Action: Adjust clutch torque setting; replace clutch plates if worn or oil-contaminated
⚠ Excessive vibration during operation
Possible Cause: Worn U-joint cross bearings; shaft out of balance; excessive operating angle
Recommended Action: Replace U-joint cross kit; check yoke alignment; reduce operating angle to <25°
⚠ Heat build-up at U-joint
Possible Cause: Insufficient lubrication; excessive operating angle; bearing failure
Recommended Action: Grease U-joints immediately; reduce operating angle; replace cross kit if bearings are damaged
⚠ Clicking or knocking noise at low speed
Possible Cause: Worn U-joint needle bearings; loose yoke on PTO stub
Recommended Action: Replace U-joint assembly; check spline wear and yoke locking mechanism
⚠ Safety guard not rotating freely
Possible Cause: Guard bearings seized; guard damaged or misaligned
Recommended Action: Replace guard bearings; straighten or replace guard halves; re-attach chains correctly
⚠ Shaft will not telescope smoothly
Possible Cause: Corrosion or debris in profile tubes; insufficient lubrication
Recommended Action: Clean and grease profile tubes; replace if scoring is visible
Case Studies – PTO Shaft for Crawler Tractor in Australia
Field notes from our engineering and sales team across Australia:
📍 Narrabri, NSW – Luke Ashworth
Purpose: Upgraded overload protection from shear bolt to friction clutch for smoother tracked tractor PTO operations
Feedback: “The safety guards are solid and rotate freely. They actually meet the WHS requirements unlike the cheap ones you get from other suppliers.”
📍 Bendigo, VIC – Trevor Collins
Purpose: Upgraded from a light-duty shaft to a heavy-duty series for commercial-scale tracked tractor PTO operations
Feedback: “Fitted perfectly to my crawler tractor with zero modification. The quality is noticeably better than the OEM shaft it replaced. I’ll be ordering more for my other implements.”
📍 Orange, NSW – Keith Douglas
Purpose: Replaced a corroded shaft that had been exposed to chemical spray residues
Feedback: “I ordered a replacement cross kit six months later and it arrived within 48 hours. Great product, great service, great support.”
📍 Mount Isa, QLD – Rick Dawson
Purpose: Required a custom-length shaft for a non-standard tractor-to-implement spacing
Feedback: “Our mechanic was impressed with the precision of the splines and the quality of the needle bearings. He said it’s the best aftermarket shaft he’s fitted in 20 years.”
📍 Wagga Wagga, NSW – Chris Taylor
Purpose: Outfitted a newly purchased second-hand crawler tractor with a reliable aftermarket PTO shaft
Feedback: “We run our crawler tractor hard across 2,000 hectares and this shaft hasn’t missed a beat after two full seasons. Exceptional value for money.”
Frequently Asked Questions – PTO Shaft for Crawler Tractor
❓ What PTO shaft series do I need for my crawler tractor?
For most crawler tractor applications in the 80–350 HP range, we recommend the T5 / L5 (Heavy duty) or T6 / L6 (Super heavy duty) series. If you operate near the upper end of this range or in particularly demanding conditions, consider stepping up to the S8 (Wide-angle) series for additional safety margin.
❓ What causes premature U-joint failure?
Common causes include insufficient lubrication, excessive operating angles (over 25°), running at speeds higher than rated, misalignment between tractor and implement, and lack of regular inspection. Following the recommended maintenance schedule significantly extends U-joint life.
❓ How often should I grease the PTO shaft?
Grease all U-joint nipples every 8–10 hours of operation, or at the start of each working day. Grease the telescoping profile tubes at the same interval. Use EP2 lithium-complex grease or as recommended in your product manual.
❓ Can I use a 540 rpm shaft on a 1000 rpm PTO?
No. Using a shaft rated for 540 rpm on a 1000 rpm PTO will result in excessive speed, dangerous vibration, and potential catastrophic failure. Always match the shaft speed rating to both the tractor PTO setting and the implement requirement.
❓ Can the shaft be shortened to fit my setup?
Yes. The telescoping profile tubes can be cut to a shorter length using an angle grinder or chop saw. Ensure a minimum of 1/3 overlap remains between the inner and outer tubes after cutting. Deburr all cut edges before reassembly.
❓ Do you ship to regional and remote Australia?
Absolutely. We ship to all Australian postcodes via major freight carriers. Regional and remote areas may have slightly longer transit times, but we work with multiple carriers to ensure reliable delivery across the country.
❓ Can I upgrade my existing crawler tractor PTO shaft to a heavier series?
In most cases, yes. As long as the yoke spline sizes match your tractor PTO stub and implement input shaft, you can upgrade to a heavier series for increased torque capacity and durability. Our technical team can advise on the correct upgrade path for your equipment.
❓ What is the difference between a shear bolt and a friction clutch?
A shear bolt is a sacrificial pin that breaks when torque exceeds its rated capacity. It is inexpensive but requires manual replacement after each event. A friction clutch slips when overloaded and automatically re-engages when the overload clears, offering uninterrupted operation in applications prone to frequent shock loads.
