Description
Core Technology Quick Read

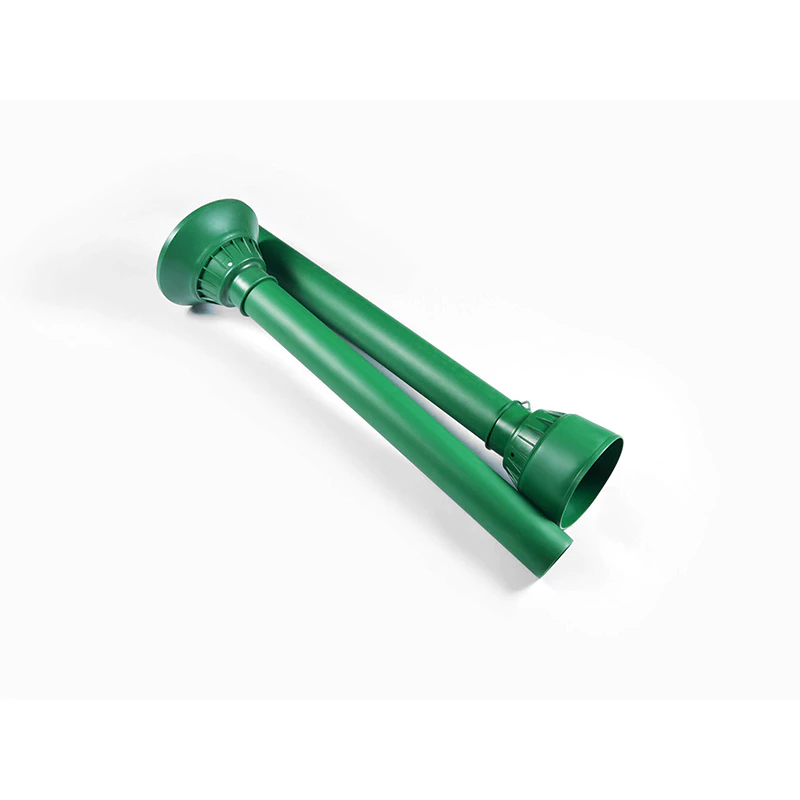

Our proprietary PTO shaft safety shields are synthesized from high-density, impact-modified polyethylene (HDPE) blends. This core technology ensures that the guard remains highly resilient under extreme mechanical stress and temperature fluctuations. Key technological advancements include:
- ✓ Self-Lubricating Nylon Bearings: Drastically reduces friction between the stationary shield and the rapidly rotating inner steel shaft, preventing heat build-up and internal melting.
- ✓ UV-Stabilized Matrix: Prevents molecular breakdown, brittleness, and cracking when exposed to prolonged, intense sunlight.
- ✓ Universal Fitment Geometry: Engineered with adaptable retaining collars to securely lock onto varying yoke groove dimensions across Series 1 through 8.
- ✓ Impact Dispersion Architecture: The corrugated tubing design absorbs and disperses kinetic energy from flying debris or accidental impacts without shattering.
Comprehensive Product Specifications
Precision is paramount when selecting a replacement shield. An improper fit can lead to bearing failure, shield rotation, and ultimately, an exposed drive shaft. Please carefully measure your existing shaft’s internal and external tubing diameters, as well as the yoke retaining groove diameters, and cross-reference them with our extensive sizing charts below.
SHIELD I Series Dimensional Data
| Series | Tube (A) mm | Retaining Collar (B) mm | Color Designation | ||
|---|---|---|---|---|---|
| Inner Ø | Outer Ø | Inner Ø | Outer Ø | ||
| 1 | 48.5 | 54.0 | 34.0 | 40.0 | BI: Black YI: Yellow |
| 2 | 61.0 | 66.5 | 40.0 | 47.0 | |
| 3/4 | 61.0 | 66.5 | 46.0 | 53.0 | |
| 5 | 75.0 | 81.0 | 54.0 | 62.0 | |
| 6/7/8 | 75.0 | 81.0 | 59.5 | 68.5 | |
| 42/48/50 | 90.0 | 96.0 | 69.5 | 81.5 | |
SHIELD II Series Dimensional Data
| Series | Tube (A) mm | Retaining Collar (B) mm | Color Designation | ||
|---|---|---|---|---|---|
| Inner Ø | Outer Ø | Inner Ø | Outer Ø | ||
| 1 | 48.5 | 54.0 | 34.0 | 40.0 | BII: Black YII: Yellow YBII: Yellow+Black |
| 2 | 61.0 | 66.5 | 40.0 | 47.0 | |
| 3/4 | 61.0 | 66.5 | 46.0 | 53.0 | |
| 5 | 75.0 | 81.0 | 54.0 | 62.0 | |
| 6/7/8 | 75.0 | 81.0 | 59.5 | 68.5 | |
| 42/48/50 | 90.0 | 96.0 | 69.5 | 81.5 | |
SHIELD WA (Wide Angle) Series Dimensional Data
| Series | Tube (A) mm | Retaining Collar (B) mm | Wide Angle Shield mm | Color Designation | |||
|---|---|---|---|---|---|---|---|
| Inner Ø | Outer Ø | Inner Ø | Outer Ø | Cone C | Cone D | ||
| 4 | 61.0 | 66.5 | 46.0 | 53.0 | 117 | 210 | BWA: Black YWA: Yellow YBWA: Yellow+Black |
| 6/32/36 | 75.0 | 81.0 | 59.5 | 68.5 | 123 | 225 | |
| 8 | 75.0 | 81.0 | 62.5 | 72.5 | 127 | 245 | |
Advanced Features & Operational Benefits
Investing in premium driveline shielding is an investment in operational longevity and personnel safety. Our products are engineered with the end-user in mind, focusing on solving the common pain points associated with agricultural machinery maintenance.
Uncompromising 360-Degree Safety Compliance
Designed to provide an absolute physical barrier around the rotating inner driveline. By utilizing high-tensile, galvanized anti-rotation chains at both ends, the shield assembly remains entirely stationary during operation. This critically prevents loose clothing, work gloves, limbs, or field debris from becoming fatally entangled in a shaft spinning at 540 RPM or 1000 RPM.
Extreme Weather Resilience
Standard plastic guards degrade, crack, and shatter rapidly. Our tractor PTO guards are molded from proprietary UV-stabilized blends. They resist brittleness in freezing temperatures, resist fading and structural breakdown under severe solar load, and handle the abrasive wear of sandy or dusty soil conditions without compromising structural integrity.
“Cut-to-Length” Customizability
Because implement distances vary greatly depending on hitch configurations, our telescoping plastic tubes are designed to be easily modified. The continuous profile allows for precision onsite cutting using standard workshop tools (like a hacksaw), guaranteeing that standard safety overlap requirements are met regardless of the machinery pairing.
Australia Extreme Working Conditions Practical Research
The Australian agricultural environment presents some of the most unforgiving working conditions on the planet. From the scorching, dry heat of the Outback to the dense, abrasive dust generated during large-scale broadacre harvesting, standard off-the-shelf mechanical components are often pushed past their failure points. Our extensive field research and client feedback across New South Wales and Western Australia have directly influenced the engineering of these safety shields. They are proven to dramatically reduce maintenance intervals and eliminate the risk of guard-shattering caused by kicked-up stones or heavy crop stubble. Our components serve as the ultimate reliable replacement of OEM parts for all major global tractor and implement brands operating within the Australian market.
Compatibility & Fitment Guide: How to Measure Accurately
Do not guess your shaft size. A loose shield is dangerous; a tight shield will melt. Follow these precise engineering steps to determine your required replacement size:
- Collapse the Driveline: Safely detach the PTO shaft from the tractor and implement. Completely compress the telescoping halves together until they bottom out.
- Measure the Closed Overall Length: Measure the exact distance from the center point of the universal joint (cross) at the tractor end to the center point of the universal joint at the implement end.
- Identify the Tube Profile: Look at the inner steel tubing. Note whether it is Lemon-shaped, Triangular, Star-profile, or Splined. This determines the series type.
- Micrometer Measurement of Tubes: Using digital calipers, measure the widest outer diameter of both the inner and outer steel driveline tubes. Compare these figures with our dimensional charts to ensure the new plastic shield has sufficient internal clearance.
- Measure the Yoke Bearing Groove: Crucially, measure the diameter of the circular retaining groove located on the steel yoke (this is where the nylon bearing of the shield will snap into place). This metric corresponds directly to the Retaining Collar (B) dimension in our specifications tables.
Installation & Maintenance Protocol
Step-by-Step Installation Process
Preparation & Sizing
Carefully remove the remnants of the old, damaged shield. Clean out the shaft yoke grooves thoroughly using a wire brush and solvent. Measure and cut the new inner and outer plastic tubes to the exact length required. Crucial rule: Ensure a minimum overlap of 1/3 of the total tube length when the shaft is fully extended in the operating position.
Bearing Assembly
Apply a layer of high-quality lithium grease to the steel yoke retaining grooves. Carefully separate the split-ring nylon retaining collars (bearings) and snap them securely into the lubricated yoke grooves. Rotate them by hand to ensure they spin completely freely without catching or showing excessive radial play.
Tube Insertion
Generously grease the inner steel shaft profile. Slide the pre-cut plastic shield tubes over their respective steel shaft halves. Align the locking tabs of the plastic cone/tube assembly with the slots on the installed nylon bearings. Push and twist (or engage the quick-release tabs) until a distinct ‘click’ confirms the lock is engaged.
Securing Safety Chains
Attach the supplied anti-rotation chains to a solid, stationary point on both the tractor master shield and the implement frame. The chains must have just enough slack to allow for the full articulation of the driveline during tight turning circles, but remain tight enough to absolutely prevent the plastic guard assembly from spinning with the shaft.
Routine Maintenance & Inspection Suggestions
- Daily Pre-Operation Checks: Visually inspect the entire length of the plastic tubing for hairline cracks, severe abrasions, or UV bleaching. Ensure both anti-rotation chains are intact, untangled, and properly anchored before engaging the tractor’s PTO clutch.
- Scheduled Bearing Lubrication: While the nylon bearings are designed to be low-friction, pumping a small amount of standard agricultural grease into the shield’s access ports (or directly onto the yoke groove if removed) every 40-50 operating hours is highly recommended. In extreme dust or mud environments, increase this frequency to prevent dirt ingress from seizing the bearing.
- Internal Debris Clearing: Depending on the crop type (especially long, fibrous grasses or vines), debris can aggressively wrap around the gap between the shield cone and the universal joint. Regularly clean out this material. Accumulation here can act like a brake pad, locking the bearing and causing the entire shield to spin dangerously, which will rapidly melt the plastic components.
Authority Certifications & Strict Safety Compliance
Safety is the foundational principle of our manufacturing process. Our production facilities operate under stringent Quality Assurance (QA) and Quality Control (QC) protocols. Every batch of PTO shaft safety shields undergoes destructive testing to guarantee performance under load.
CE Certified Equipment
Fully meets and exceeds European Economic Area (EEA) environmental, health, and operator safety legislation directives for agricultural machinery.
ISO 5674 Compliant
Manufactured in absolute conformity with the International Organization for Standardization requirements regarding power take-off drive shafts and their respective guards.
⚠ CRITICAL SAFETY WARNINGS
Entanglement in a rotating driveline can cause severe dismemberment or immediate fatal injury in a fraction of a second. The forces generated by agricultural machinery cannot be stopped by human strength.
- NEVER operate any tractor or implement if the PTO shield is missing, severely cracked, or has been modified.
- NEVER step across, reach over, or work within the vicinity of a rotating drive shaft.
- ALWAYS completely disengage the PTO clutch, turn off the tractor engine, wait for all rotating components to come to a complete dead stop, and remove the ignition key before approaching, cleaning, or servicing the driveline.
- Ensure master shields on the tractor and implement input shafts are correctly installed in conjunction with the driveline shield.
Frequently Asked Questions (FAQ)
1. What exact size PTO shaft shield do I need for my specific tractor implement?
Sizing is not based on horsepower alone. To determine the correct fitment, you must measure the cross-to-cross length of your existing PTO shaft when fully collapsed, and carefully note the diameter of the inner and outer yokes’ retaining grooves. Refer to our comprehensive dimensional tables (Series 1 through 8) provided above to find the exact replacement shield code that matches your mechanical measurements.
2. How often should I logically replace my agricultural PTO safety guard?
There is no strict calendar lifespan, as degradation depends on operating conditions and UV exposure. However, PTO safety guards must be inspected before every single use. Total replacement is mandatory and immediate if you discover any structural cracks, missing or worn nylon bearings, broken anti-rotation chains, or if the plastic tube has become brittle and discolored due to UV damage.
3. Can I cut this replacement PTO shield to fit a non-standard drive shaft length?
Yes, absolutely. Our safety shields are engineered with a user-friendly cut-to-length feature. You can cleanly trim both the inner and outer plastic telescoping tubes using a fine-toothed hacksaw. Always ensure that after cutting, the two halves maintain a safe overlap of at least one-third of their length during maximum operational extension.
4. Does the new PTO cover assembly package include the anti-rotation chains?
Yes. Every complete standard, heavy-duty, and wide-angle PTO shaft safety shield assembly we dispatch is supplied fully complete with high-strength, zinc-plated anti-rotation chains and quick-release spring clips. These are essential to secure the guard cones to the implement and tractor, thereby preventing the shield assembly from rotating.
5. Are these shields compatible as replacements for major European brands?
Yes, our replacement guards are meticulously reverse-engineered to serve as seamless, drop-in replacement of OEM units. Provided you match the correct series geometry (Lemon, Triangular, Star profile, etc.) and yoke diameters, our components serve as perfect and economical replacement of Walterscheid guards, as well as dependable replacement of Bondioli & Pavesi driveline shielding systems.

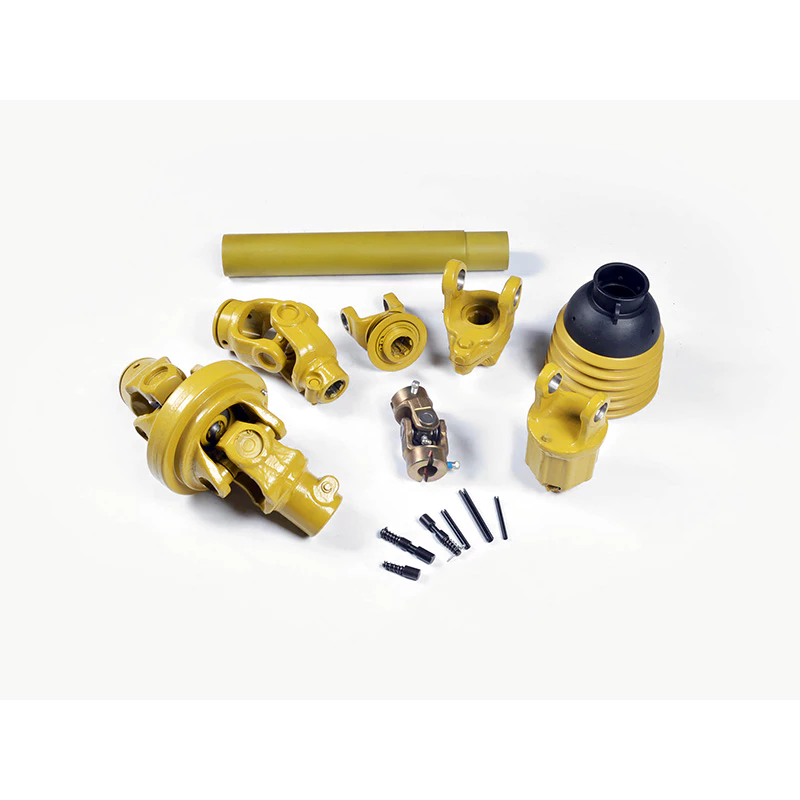

Integrated Power Solutions: Agricultural Gearboxes & Powertrain Components
At Ever-power Australia, we understand that optimal mechanical efficiency requires a holistic approach to power transmission. We provide complete, end-to-end powertrain solutions. A robust, well-shielded PTO shaft is only as effective as the gearbox it ultimately drives. To ensure maximum torque transfer and operational harmony, we design, forge, and manufacture an elite range of premium agricultural gearboxes calibrated perfectly to pair seamlessly with our driveline components.
From heavy-duty rotary slashers and intense post-hole digger applications to large-scale feed mixers and fertilizer spreaders, our right-angle, bevel, and reduction gearboxes deliver uncompromising torque transfer under extreme stress. Furthermore, we supply a vast and diverse inventory of comprehensive PTO sub-components, including forged universal joints, varying spline-count yokes, precision friction slip clutches, overrunning clutches, and shear bolt torque limiters. Explore our full homepage product catalog to upgrade, repair, or overhaul your machinery’s power delivery system today.
Ever-power Australia: Unmatched Manufacturing Capabilities & Customization
As a dominant force and leading B2B supplier within the Australian and global agricultural sectors, Ever-power Australia PTO Shaft boasts vast, state-of-the-art automated production facilities. We implement uncompromising metallurgical testing, CNC precision machining, and strict quality control mechanisms at every stage of the manufacturing process.
We do not just supply standard off-the-shelf catalog parts. Our true engineering strength lies in our capacity for rapid customized, non-standard mechanical manufacturing. Whether your operation requires specialized wide-angle 80-degree CV joints, unique high-torque splined yokes, heavy-duty forged driveline components, or bespoke safety shielding dimensions tailored to experimental or proprietary implement designs, our dedicated engineering division can machine and manufacture prototypes and bulk production runs precisely to your provided CAD drawings, blueprints, or physical samples.
