Power Take-Off System Selection Essentials
A condensed technical reference for procurement engineers and fleet managers sourcing PTO shaft parts for agricultural equipment in Australia.
Drive System Selection Key Points
- PTO shafts transfer rotational energy from the tractor's transmission to towed or mounted implements at standardised speeds of 540 RPM or 1000 RPM.
- Critical sub-assemblies include drive shafts, cross kits (universal joints), safety shields, torque limiters, yoke ends, and adaptors.
- Proper spline count (6-spline 1-3/8", 21-spline 1-3/4", or 20-spline 1-3/4") must match both the tractor output stub and the implement input shaft.
- Torque rating should exceed the maximum load of the driven implement by a minimum safety factor of 1.25x to 1.5x.
- Safety shielding must comply with AS/NZS 4024.1 and ISO 5673 standards for all agricultural PTO connections in Australian workplaces.
- Telescopic (sliding profile) tubes allow length adjustment to suit varying hitch-to-implement distances during turning and undulating terrain.
- Regular greasing of cross bearings and slip joints at intervals of 8 to 10 operating hours significantly extends service life.
- Ever-power PTO components are designed as direct-fit replacements for major OEM brands, eliminating the need for costly aftermarket modifications.
Our PTO Shaft Parts Range
Browse our complete catalogue of power take-off components engineered for the agricultural, industrial, and construction sectors across Australia.
PTO Drive Shafts
Complete power take-off drive shaft assemblies including telescopic tubes, wide-angle shafts, and heavy-duty constant-velocity drivelines. Available in standard series (1 through 8) to handle torque loads from compact utility tractors to large-scale broadacre headers. Each PTO driveshaft kit ships with matched yokes, cross kits, and safety guards.
PTO Cross Kit
Precision-machined universal joint cross and bearing kits in sizes ranging from 22 x 54 mm to 39.7 x 118 mm. Needle roller bearings are heat-treated to HRC 60-64 for maximum wear resistance. Our PTO cross kits are direct replacements for Bondioli, Walterscheid, and Comer cross bearings, with grease nipples pre-installed for easy field maintenance.

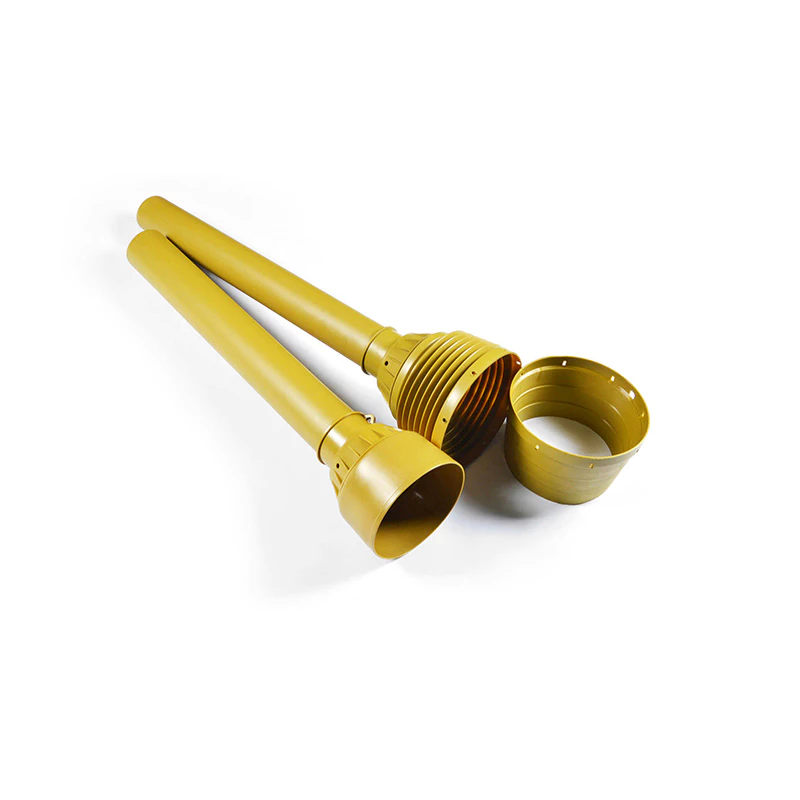

PTO Safety Shield
Full-length and half-length PTO shaft guard sets manufactured from impact-resistant polypropylene (PP) with cone-shaped or bell-shaped retention ends. Compliant with ISO 5674 and Australian workplace safety codes. Safety shields include tractor-side and implement-side cones, bearing-supported free-spinning outer tubes, and retaining chains.

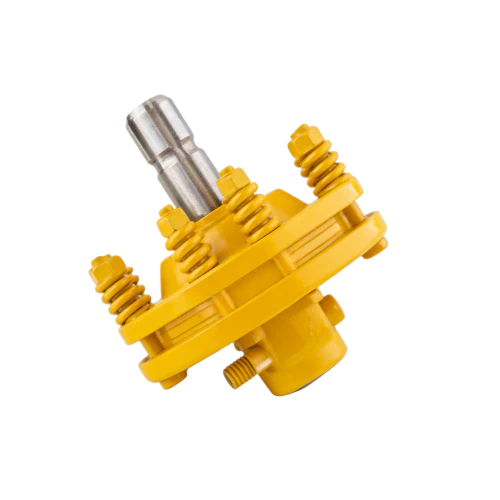

PTO Torque Limiters
Friction-type and shear-bolt torque limiters that protect both the tractor gearbox and the driven implement from sudden torque spikes. Adjustable clutch models allow field-tuneable release thresholds from 200 Nm to 3,000 Nm. Ratchet-type torque limiters provide automatic re-engagement for continuous-feed applications like balers and forage harvesters.

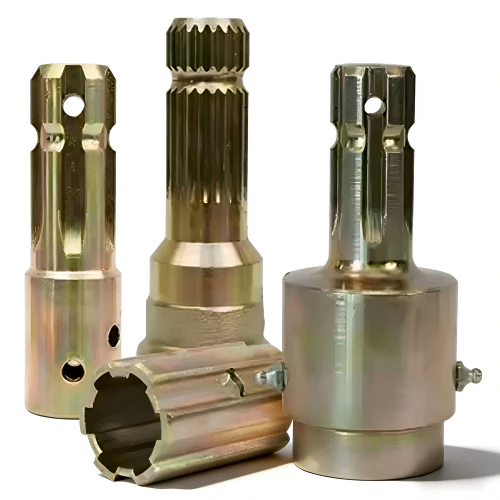

PTO Adaptors
Spline conversion adaptors for mismatched tractor-to-implement configurations, including 6-spline to 21-spline, 20-spline to 6-spline, 540 RPM to 1000 RPM speed-up and step-down gearbox adaptors, and quick-hitch PTO stub extensions. Precision CNC-turned from high-grade alloy steel with induction-hardened spline teeth for extended operational life.

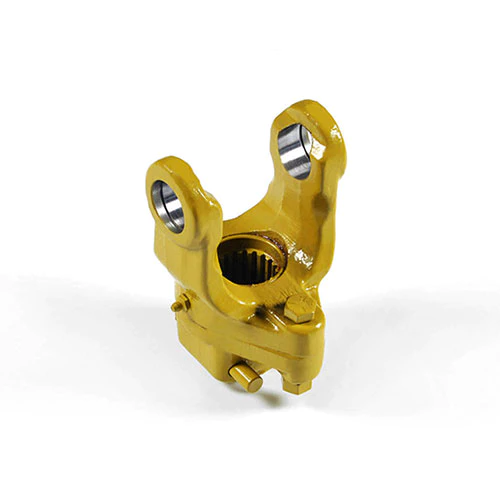

PTO End Yokes
Tractor-side and implement-side PTO yoke ends in push-pin, bolt-on, and quick-release configurations. Available for round bore, splined bore, and keyed shaft connections. All yoke forgings are produced from C45 or 42CrMo4 steel, normalized and shot-blasted, with cross-hole tolerances held within 0.02 mm. Replacement yokes for all major Series sizes from 1 to 8.
Performance Characteristics
Every Ever-power PTO shaft part is engineered with demanding Australian farming conditions as the baseline specification.
High Torque Capacity
Forged from 42CrMo4 alloy steel with induction-hardened splines, our PTO shaft components handle continuous torque loads up to 3,500 Nm without deformation. Heavy-duty cross bearings are rated at 55,000-hour B10 life under standard agricultural loading.
Extended Service Life
Triple-lip sealed universal joints and phosphate-coated telescopic tubes resist the fine dust, chaff, and moisture common to the Australian harvest environment. Grease retention is improved by up to 40% compared to standard single-lip seals, reducing maintenance intervals and unplanned downtime.
Precision Manufacturing
CNC-turned yokes, ground and lapped cross trunnions, and laser-cut profile tubes ensure component-to-component consistency. Every batch is dimensionally inspected against ISO 9001:2015 quality protocols before shipping to Australia, guaranteeing direct-fit interchangeability with OEM driveline assemblies.
Safety Compliance
All PTO safety shields and guards meet or exceed AS/NZS 4024.1, ISO 5674, and EN 12965 standards. Free-spinning guard tubes prevent entanglement hazards. Torque limiters provide an additional layer of overload protection that safeguards the operator, the tractor gearbox, and the driven implement simultaneously.
How PTO Shafts Work in Agricultural Machinery
Understanding the mechanical role of the power take-off system in a working farm environment.
Location and Function on Farm Equipment
The PTO stub shaft is located at the rear of the tractor, emerging from the rear transmission housing just below the three-point hitch linkage. This hardened splined stub is the power output point that connects to the PTO drive shaft, which in turn delivers rotational energy to any towed or mounted implement.

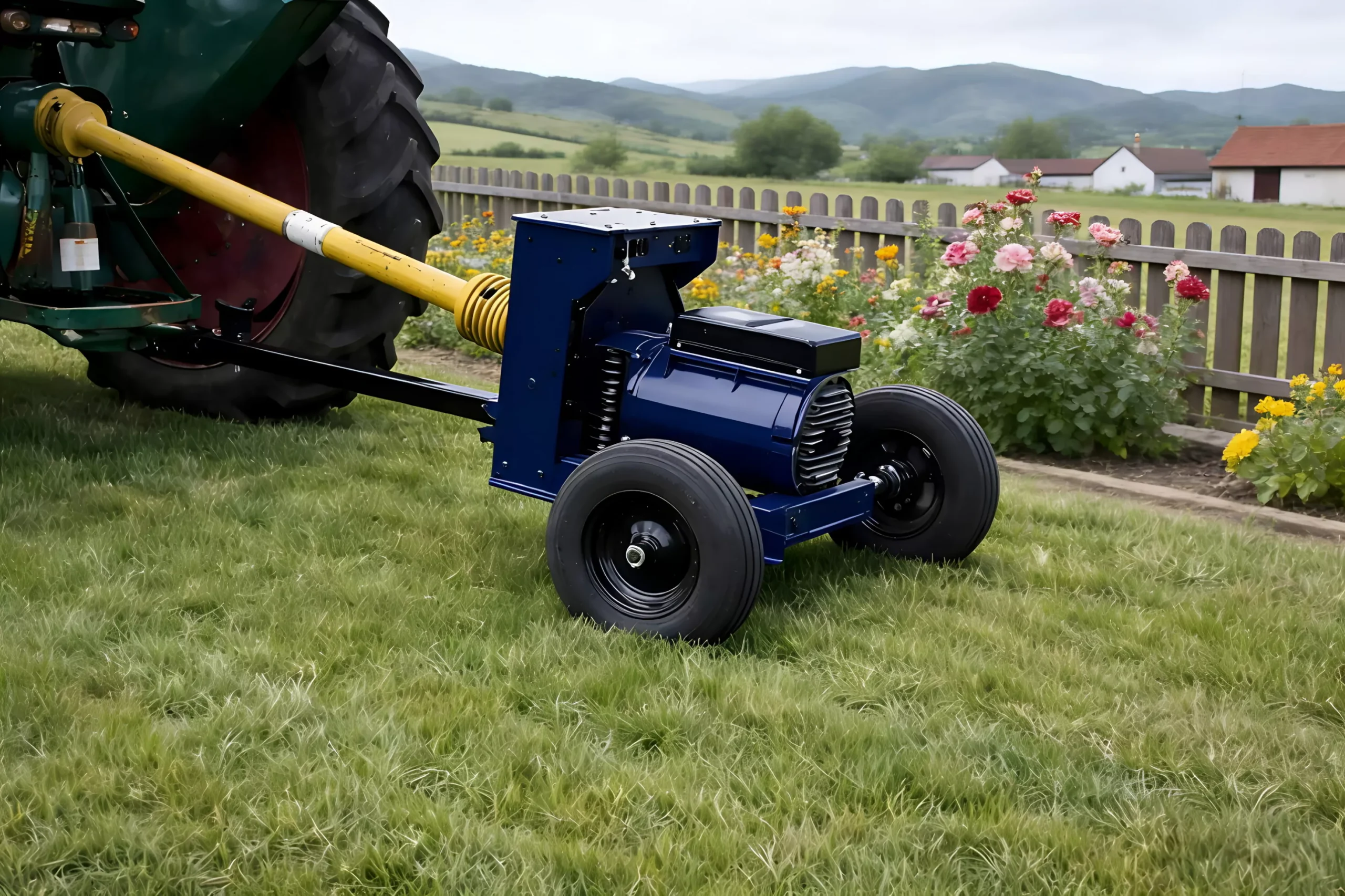

In a typical configuration, the PTO shaft runs between the tractor PTO stub and the implement input connection. It passes beneath or alongside the drawbar or lower link arms. A telescopic profile tube allows the shaft to extend and compress as the tractor turns or traverses uneven ground without placing bending loads on the universal joints.
Common implements driven by the PTO include rotary slashers, hay balers, feed mixers, post-hole diggers, rotary hoes, fertiliser spreaders, water pumps, grain augers, and forage harvesters. Each implement requires a specific shaft series, torque rating, and spline profile to operate safely and efficiently.
Universal joints (cross kits) at each end of the drive shaft allow the shaft to operate at angles up to 25 degrees (standard) or 80 degrees (wide-angle CV joints) to accommodate the geometric offset between the tractor and the implement. The entire assembly is enclosed in a free-spinning safety shield to prevent operator entanglement.
Power Generation
The tractor engine generates rotational power through the transmission. A dedicated PTO clutch engages the PTO output gear, spinning the rear PTO stub shaft at a standardised speed of 540 or 1000 RPM, independent of ground speed.
Torque Transmission
The PTO drive shaft connects to the tractor stub via a splined yoke end. Rotational torque travels through the telescopic profile tubes, with universal joints (cross kits) at each end compensating for angular misalignment between the tractor and implement.
Implement Activation
At the implement end, the shaft yoke connects to the implement's input shaft or gearbox. The incoming rotational energy drives cutting blades, augers, rollers, pumps, or whatever mechanism the implement uses to perform its agricultural function.
Overload Protection
Torque limiters (friction clutch or shear bolt type) sit between the drive shaft and the implement. When a sudden obstruction causes torque to spike beyond the set threshold, the limiter slips or shears, protecting the tractor gearbox, the shaft, and the implement from catastrophic damage.
Cross-Reference Compatibility Guide
Ever-power PTO shaft parts are engineered as direct-fit replacements for the following OEM and aftermarket brands. Brand names are referenced solely to assist buyers in identifying the correct replacement parts and do not imply endorsement, affiliation, or sponsorship.
| OEM / Aftermarket Brand | Compatible Ever-power Range | Series Covered | Cross Kits | Yokes | Shields |
|---|---|---|---|---|---|
| Bondioli & Pavesi | EP-BP Series Shafts | Series 1-8 | ✓ | ✓ | ✓ |
| Walterscheid (GKN) | EP-W Series Shafts | Series 2-8 | ✓ | ✓ | ✓ |
| Comer Industries | EP-CM Series Shafts | Series 1-6 | ✓ | ✓ | ✓ |
| Benzi & Di Terlizzi | EP-BT Series Shafts | Series 2-6 | ✓ | ✓ | ✓ |
| AW (La Magdalena) | EP-AW Series Shafts | Series 1-6 | ✓ | ✓ | ✓ |
| Shantuo / Chinese OEM | EP-ST Series Shafts | Series 1-4 | ✓ | ✓ | ✓ |
| Eurocardan | EP-EC Series Shafts | Series 2-7 | ✓ | ✓ | ✓ |
Disclaimer: All brand names, model numbers, and trademarks listed above are the property of their respective owners. They are used here solely for cross-reference and identification purposes to help end-users locate the correct replacement PTO shaft parts. Ever-power is an independent manufacturer and is not affiliated with any of the above brands.
Australian Agricultural PTO Standards and Field Conditions
Meeting regulatory requirements and adapting to the unique operating environment of Australian broadacre, pastoral, and horticultural operations.
Workplace Health and Safety Compliance
Under the Australian Work Health and Safety (WHS) Act and the relevant state-based regulations, every PTO shaft operating on an Australian farm must be fitted with a compliant safety guard or shield assembly. Safe Work Australia guidelines specifically reference AS/NZS 4024.1 and ISO 5674 as the applicable standards. Ever-power PTO safety shields are designed and tested to meet these requirements, with free-spinning outer tubes, retention chains, and cone-end caps that prevent accidental contact with the rotating shaft.
Queensland and New South Wales Extreme Heat Adaptation
Operating temperatures in the inland cropping regions of Queensland (Darling Downs, Central Highlands) and New South Wales (Moree Plains, Narrabri corridor) regularly exceed 40 degrees C during harvest. High ambient heat accelerates grease degradation within universal joint bearings. Ever-power cross kits are packed with Mobilux EP 2 equivalent lithium complex grease rated to 150 degrees C continuous, ensuring bearing protection through the harshest summer harvesting conditions. Dust and chaff ingress is mitigated by triple-lip seals on every cross bearing cap.
Victoria and South Australia Cool-Season Cropping Requirements
The western districts of Victoria (Hamilton, Ararat, Ballarat corridor) and the mid-north of South Australia (Clare Valley, Yorke Peninsula) present a different set of challenges: damp and cold conditions during seeding season, heavy clay soils, and frequent short-cycle implement changes. Our quick-release PTO yokes and push-pin connections allow rapid swap-out without tools, reducing downtime during tight seeding windows. Phosphate-coated profile tubes resist moisture-induced corrosion common in these regions.
Western Australia Broadacre Terrain Adaptation
The grain belt of Western Australia, stretching from Geraldton to Esperance, is characterised by sandy loam soils and vast paddock sizes that demand extended continuous-run durability from every driveline component. PTO shafts on large-scale headers, grain augers, and chaff carts in this region routinely log 800 to 1,200 operating hours per season.
Ever-power Series 6 and Series 8 PTO shafts are rated for exactly this type of high-hour, high-vibration service. The telescopic tubes feature Rilsan (nylon 11) coated inner profiles that reduce sliding friction by 35%, extending tube life and reducing the force required to compress and extend the shaft during tight headland turns.
For mixed farming operations in the WA wheatbelt that run both cropping and livestock equipment, our modular PTO shaft kits allow a single driveline set to service multiple implements by swapping yoke ends and torque limiters, reducing total inventory cost.
About Ever-power
Engineering precision PTO shaft parts and agricultural driveline components for the global market since 2004.
Ever-power is a specialist manufacturer and exporter of power take-off shaft assemblies, replacement PTO components, and custom driveline solutions. Our vertically integrated production facility houses dedicated forging, CNC machining, heat treatment, and assembly lines, enabling complete quality control from raw billet to finished, tested product.
We maintain an active inventory of over 10,000 part numbers covering PTO drive shafts (Series 1 through 8), cross kits, safety shields, torque limiters, yoke ends, spline adaptors, and complete shaft assemblies. This depth of stock means Australian customers receive their orders quickly, with most standard items dispatched within 3 to 5 business days.
Beyond standard catalogue parts, we operate a full-service custom OEM and non-standard design division. If you have a unique spline profile, a non-standard shaft length, a special torque limiter setting, or any other requirement that falls outside our catalogue range, send us your drawings, samples, or specifications and our engineering team will develop a solution.
We welcome customers to provide technical drawings, 3D models, or physical samples for custom PTO shaft development. Whether you need a single prototype or a 10,000-unit annual supply contract, contact our team to discuss your project.

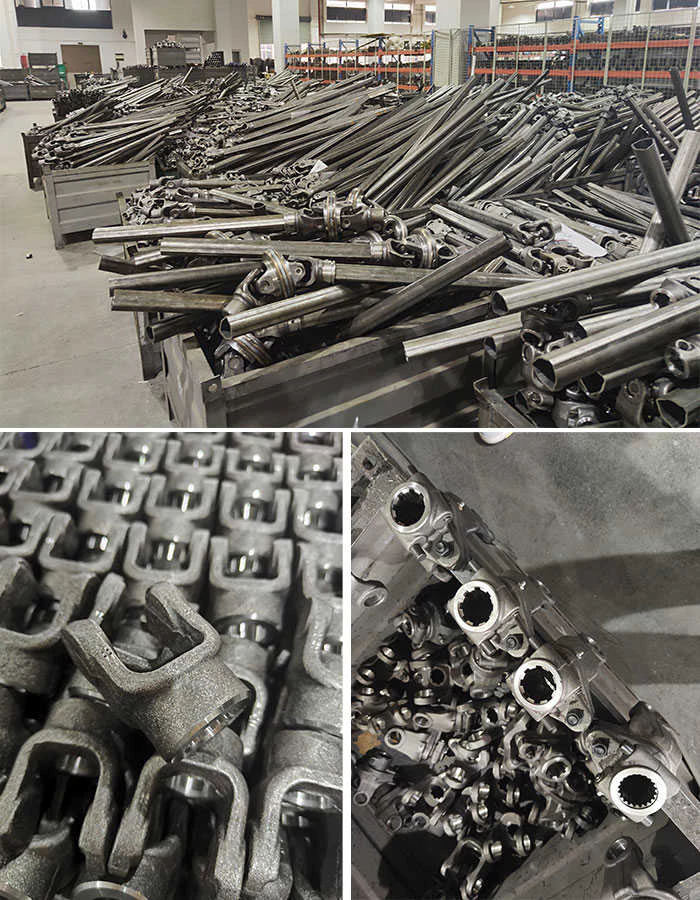

Vertically Integrated
Forging, machining, heat treatment, and assembly under one roof. Full traceability from raw material to tested finished product.
Custom Engineering
Non-standard PTO shafts, bespoke spline profiles, special-length assemblies, and prototype development. Send your drawings or samples.
Global Logistics
Dedicated export packing, container loading optimisation, and FOB/CIF/DDP shipping terms to all major Australian ports including Melbourne, Sydney, Brisbane, Fremantle, and Adelaide.
Quick PTO Shaft Selection Guide
Identify the key parameters before ordering. Use this table to match your tractor and implement combination to the correct PTO drive shaft specification.
| Parameter | What to Check | Typical Options | Why It Matters |
|---|---|---|---|
| PTO Speed | Tractor rear PTO stub rating | 540 RPM / 1000 RPM / 540E / 1000E | Must match the implement's designed input speed. Running at incorrect RPM damages gearboxes and reduces efficiency. |
| Spline Profile | Count the splines on the tractor PTO stub and the implement input shaft | 6-spline 1-3/8" / 21-spline 1-3/4" / 20-spline 1-3/4" | Mismatched splines prevent physical connection. An adaptor may be required for conversions. |
| Series / Size | Torque requirement of the implement and cross kit size | Series 1 (light) through Series 8 (heavy) | Under-sizing the shaft series leads to premature cross bearing failure and potential shaft breakage under load. |
| Closed Length | Measure from tractor PTO stub face to implement input shaft face with the drawbar or 3-point hitch at its shortest position | 600 mm - 2,000 mm typical | A shaft that is too short will pull apart during turns; too long will bottom out and damage the telescopic tubes. |
| Operating Angle | Angular offset between tractor PTO and implement input when hitched | 0-25 deg (standard UJ) / 0-80 deg (wide-angle CV) | Exceeding the joint's rated angle causes vibration, accelerated wear, and eventual cross kit failure. |
| Torque Limiter Type | Implement manufacturer's recommendation or calculated maximum torque | Friction clutch / Shear bolt / Ratchet / Free wheel | Protects the tractor, shaft, and implement from damage during overload events such as hitting a stump or rock. |
| Yoke Connection | Connection type at both tractor and implement ends | Push-pin / Bolt-on / Quick-release / Flange | Must match existing hardware for secure, wobble-free connection. Incorrect yoke type creates dangerous play in the joint. |
| Safety Shield | Regulatory requirement and physical clearance | Full-length / Half-length / With chains / Without chains | Mandatory under Australian WHS regulations. Shields prevent operator contact with the rotating shaft. |
Need assistance selecting the correct PTO shaft configuration? Contact our engineering team with your tractor model, implement type, and application details for a personalised recommendation.
Field Engineer's Notebook: Australian Case Studies
Real-world installations and outcomes from across Australia's diverse agricultural regions.
Cotton and Grain Operation - Header Driveline Upgrade
A 4,800-hectare mixed cotton and grain property near Moree was experiencing repeated PTO cross kit failures on two John Deere S790 headers during the October-November harvest peak. Cross bearing life was averaging just 280 hours, requiring mid-season replacements that cost the operation an estimated 6 hours of downtime per event.
We supplied Ever-power EP-W Series 6 replacement PTO shafts with upgraded triple-lip sealed cross kits and Rilsan-coated telescopic tubes. After a full season of operation (1,150 hours combined), neither shaft required bearing replacement.
Hay Contractor - Baler PTO Torque Limiter Retrofit
A contract hay baling business operating across the Darling Downs region was losing an average of two shear bolts per day on their Krone BiG Pack 1290 large-square baler during peak lucerne season. The frequency of stops was reducing daily bale count by roughly 15%, directly impacting revenue.
We recommended and supplied an Ever-power EP-RL ratchet-type torque limiter calibrated to 2,400 Nm to replace the existing shear-bolt clutch. The ratchet limiter slips momentarily under overload then re-engages automatically, eliminating the need to stop and replace shear bolts.
Dairy and Pasture Enterprise - Multi-Implement PTO Kit
A 350-cow dairy operation in the western districts of Victoria needed to run five different PTO-driven implements (rotary slasher, fertiliser spreader, feed mixer, water pump, and post-hole digger) from a single 120 HP utility tractor. Previously, the farm was maintaining five separate PTO shafts of varying quality and condition, several with damaged or missing safety shields.
We supplied a modular PTO shaft kit based on an Ever-power EP-BP Series 4 shaft with a set of interchangeable quick-release yoke ends and two torque limiter options (friction clutch for the slasher and spreader; shear bolt for the auger and digger). All five implements were covered with one base shaft and a small parts kit.
Broadacre Grain - Wide-Angle CV Shaft for Chaser Bin
A large-scale grain operation south of Esperance was running a custom-built chaser bin with a steep angular offset between the tractor PTO and the bin's discharge auger input. Standard universal joints were failing within 200 hours due to the excessive operating angle (approximately 35 degrees constant). The original shaft manufacturer could not resolve the issue.
We engineered a custom Ever-power wide-angle constant-velocity (CV) PTO shaft rated for up to 80 degrees of articulation. The CV joint eliminates the speed fluctuation inherent in standard Cardan-type universal joints at high angles, removing the vibration that was destroying bearings.
Vegetable Grower - Rotary Hoe PTO Shaft Replacement Programme
A 200-hectare irrigated vegetable farm on the Murray River flats was running a fleet of four rotary hoes across their potato, onion, and carrot blocks. The existing Italian-made PTO shafts were over 10 years old with worn splines, loose yoke fits, and cracked safety shields. The farmer needed a cost-effective replacement programme that could be rolled out across all four machines within a single off-season maintenance window.
We supplied four complete Ever-power EP-CM Series 4 PTO shaft assemblies configured with friction-clutch torque limiters (set to 1,200 Nm), new safety shield sets, and push-pin yokes matching the existing rotary hoe input connections. All shafts were cut to the exact closed length specified by the customer.
Mixed Farm - PTO Safety Compliance Audit
A mixed cropping and livestock property in northern Tasmania engaged us after a WorkSafe audit identified three PTO-driven implements operating without compliant safety shields. The farmer needed to bring all machines into compliance with AS/NZS 4024.1 within 30 days to avoid further penalties.
We fast-tracked an order of three Ever-power full-length PTO safety shield assemblies, each custom-matched to the existing shaft diameter and length. Shields included tractor-side and implement-side retention cones, bearing-supported outer tubes, and restraining chains. All three kits were delivered and fitted within 12 business days.
Frequently Asked Questions
Answers to the questions our Australian wholesale, dealer, and OEM customers ask most often.
For standard catalogue items such as cross kits, yokes, safety shields, and torque limiters, our minimum order quantity is typically 50 pieces per SKU for sea freight shipments. Complete PTO drive shaft assemblies have a standard MOQ of 20 units. For custom-manufactured or non-standard parts (bespoke spline profiles, special lengths, unique torque limiter settings), the MOQ is determined case-by-case during the quotation process. We understand that initial trial orders may be smaller, and we are happy to discuss flexible arrangements for first-time customers evaluating our product quality. Please contact us with your specific requirements and we will confirm the applicable MOQ.
Absolutely. Custom engineering is a core part of our business. We routinely manufacture PTO shafts with non-standard closed lengths, special spline profiles, custom torque limiter pre-load settings, unique yoke-end bore sizes, and application-specific surface treatments. Our process for custom orders is straightforward: send us your technical drawings, 3D CAD files, or physical samples along with the operating parameters (torque, RPM, angular range, environment). Our engineering team will prepare a design review, produce a prototype if required, and then move into production. Lead times for custom PTO parts typically range from 4 to 8 weeks depending on complexity and quantity.
We offer FOB, CIF, and DDP (Delivered Duty Paid) shipping terms to all major Australian ports, including Melbourne, Sydney, Brisbane, Fremantle, Adelaide, and Devonport. Standard sea freight delivery to eastern Australian ports takes approximately 18 to 22 days from shipment date. Western Australian ports (Fremantle) are typically 16 to 20 days. Express air freight is available for urgent orders and can reduce transit time to 5 to 7 days. We handle all export packing, container loading, and documentation. For DDP terms, we work with local customs brokers to ensure your goods clear Australian customs and are delivered to your nominated address with all duties and taxes pre-paid.
Yes. All Ever-power PTO safety shield assemblies are designed and manufactured to comply with ISO 5674, EN 12965, and the requirements referenced by Safe Work Australia under AS/NZS 4024.1. Each shield set includes a tractor-side retention cone, an implement-side retention cone, a bearing-supported free-spinning outer tube, and retaining chains. The outer tube material is impact-resistant polypropylene (PP) that withstands UV exposure and temperature extremes typical of Australian field conditions. Compliance with these standards is not optional for any PTO shaft operating in an Australian agricultural workplace; it is a legal requirement under the Work Health and Safety Act.
To identify the correct replacement PTO shaft, you need four key pieces of information: (1) the spline profile and size of your tractor's PTO output stub (count the splines and measure the diameter); (2) the spline profile and size of your implement's input shaft; (3) the closed length of the shaft measured from the tractor PTO stub face to the implement input face with the hitch at its shortest position; and (4) the torque requirement of the implement (usually stated in the implement operator's manual). With these four data points, our team can cross-reference to the correct Ever-power shaft series, yoke type, and torque limiter configuration. If you have the old shaft, you can also read the series number stamped on the cross kit or the profile tube. Photographs and measurements sent to our engineering team are always welcome if you are unsure.

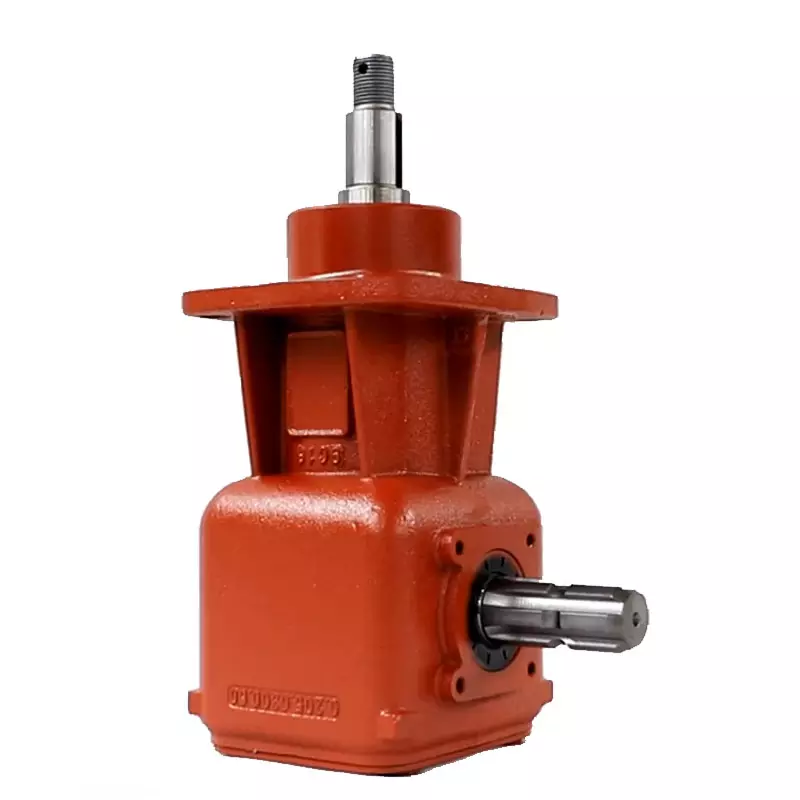

Complete Your Driveline System
PTO shafts and gearboxes work as an integrated system. Ever-power manufactures both, ensuring matched performance and simplified procurement.
